Adaptive Terrain Navigation
Experience unparalleled mobility with our robotic chassis, featuring a hybrid wheeled quadruped and dual-track system. Equipped with 14 powered systems, it ensures exceptional stability and the ability to conquer complex terrains, including steep inclines and rugged surfaces, with remarkable ease.
Versatile Operating Modes

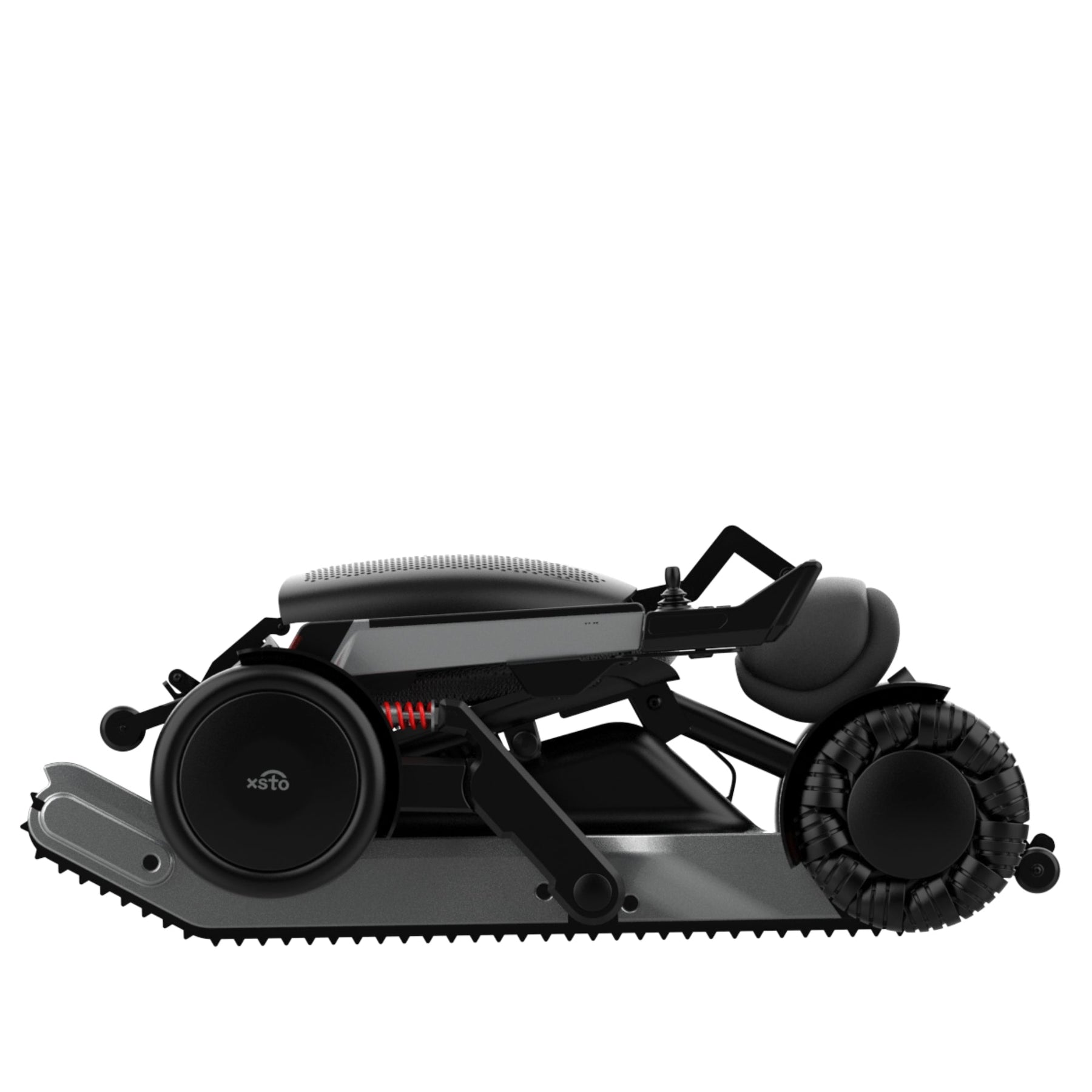

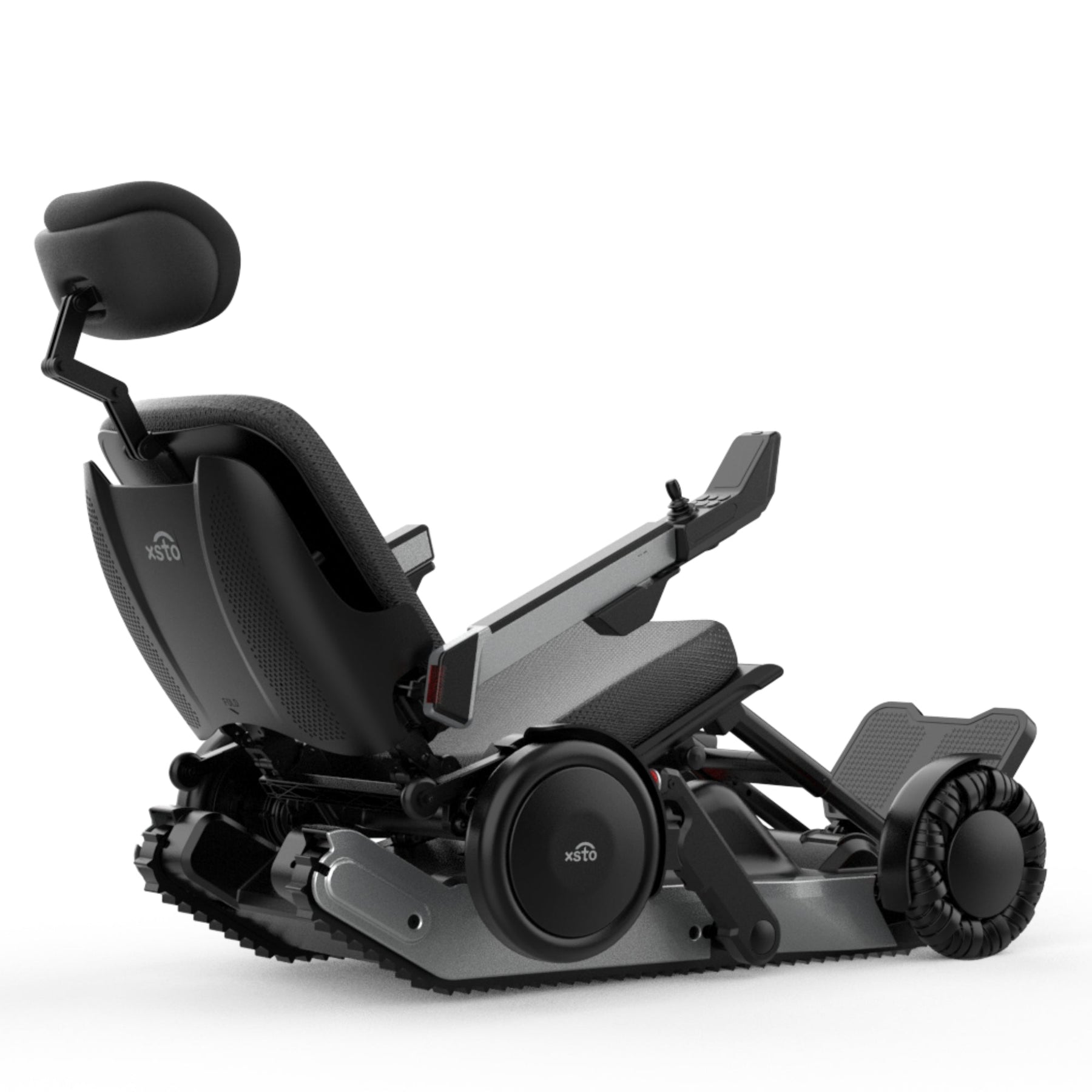

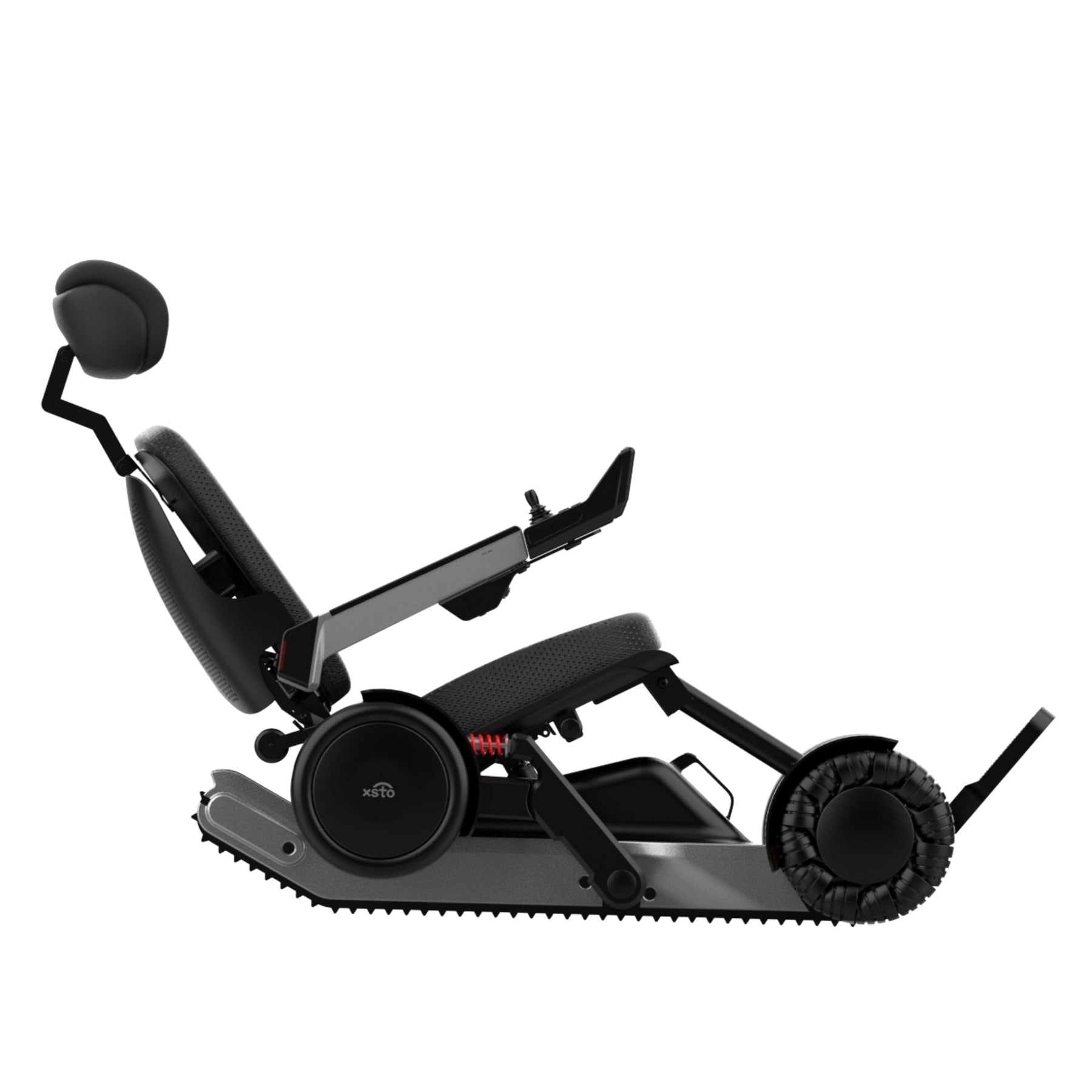

Caterpillar Mode
The wheeled quadruped robot chassis boasts an independent power and suspension system for each wheel, providing robust off-road capabilities and a comfortable ride.

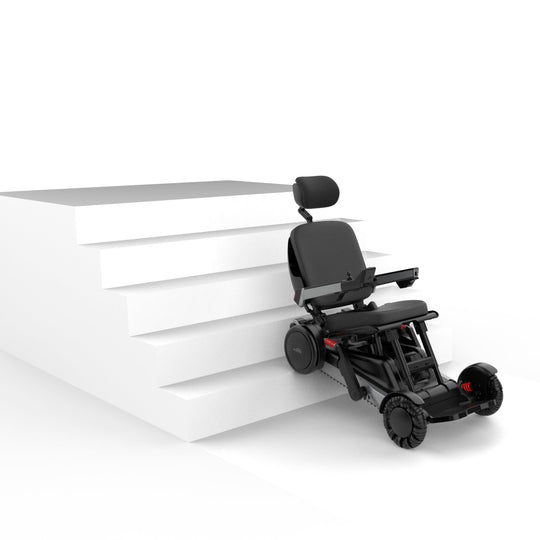

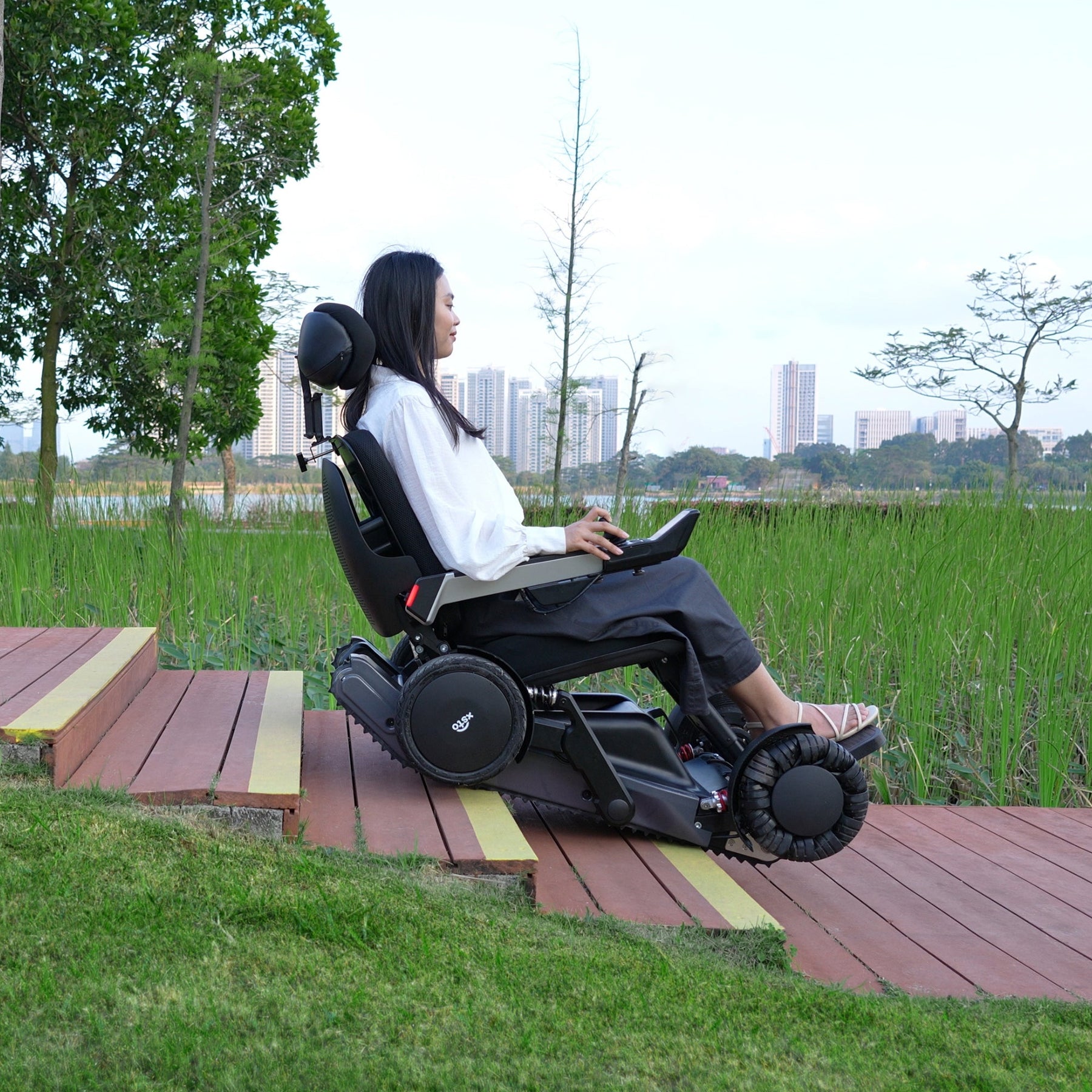

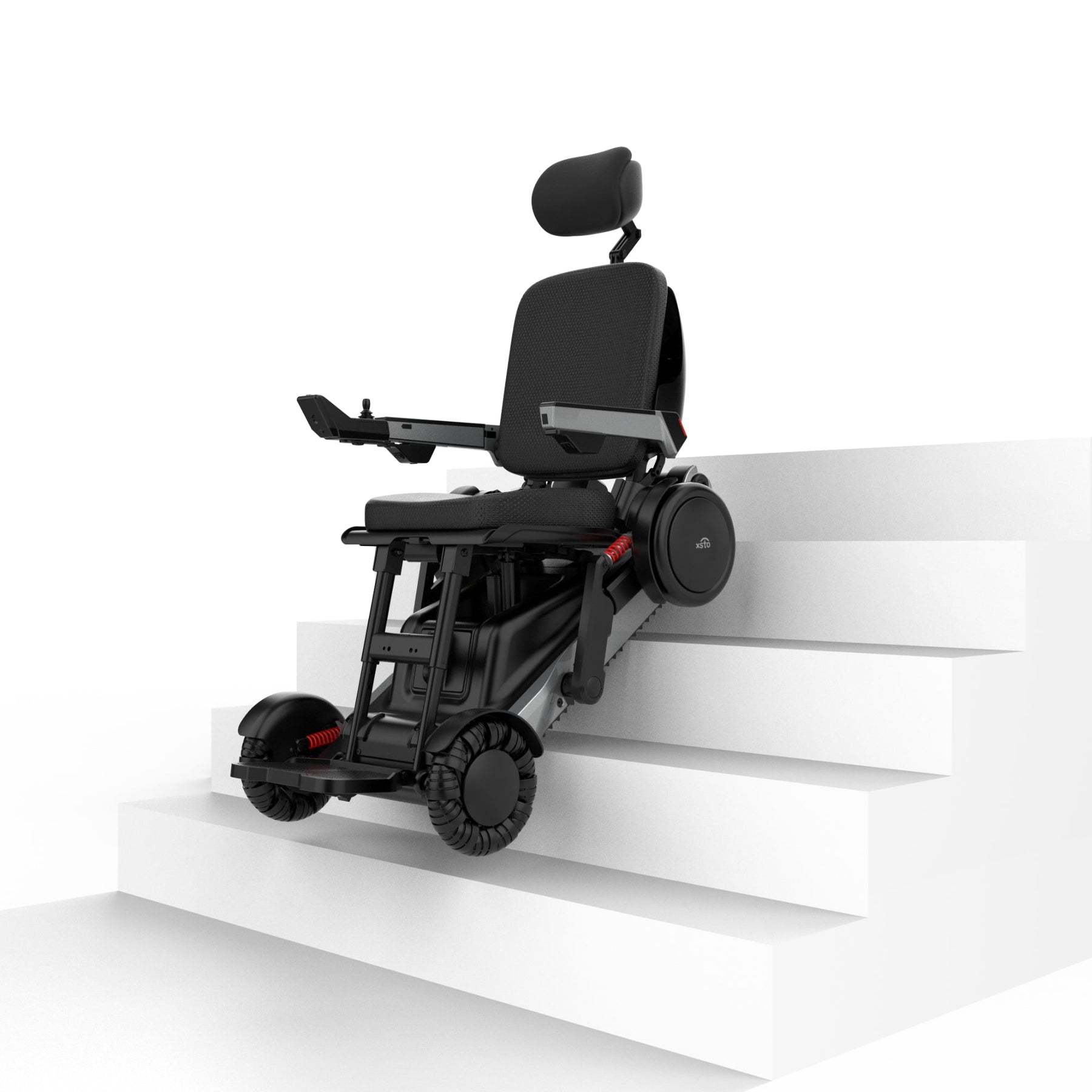

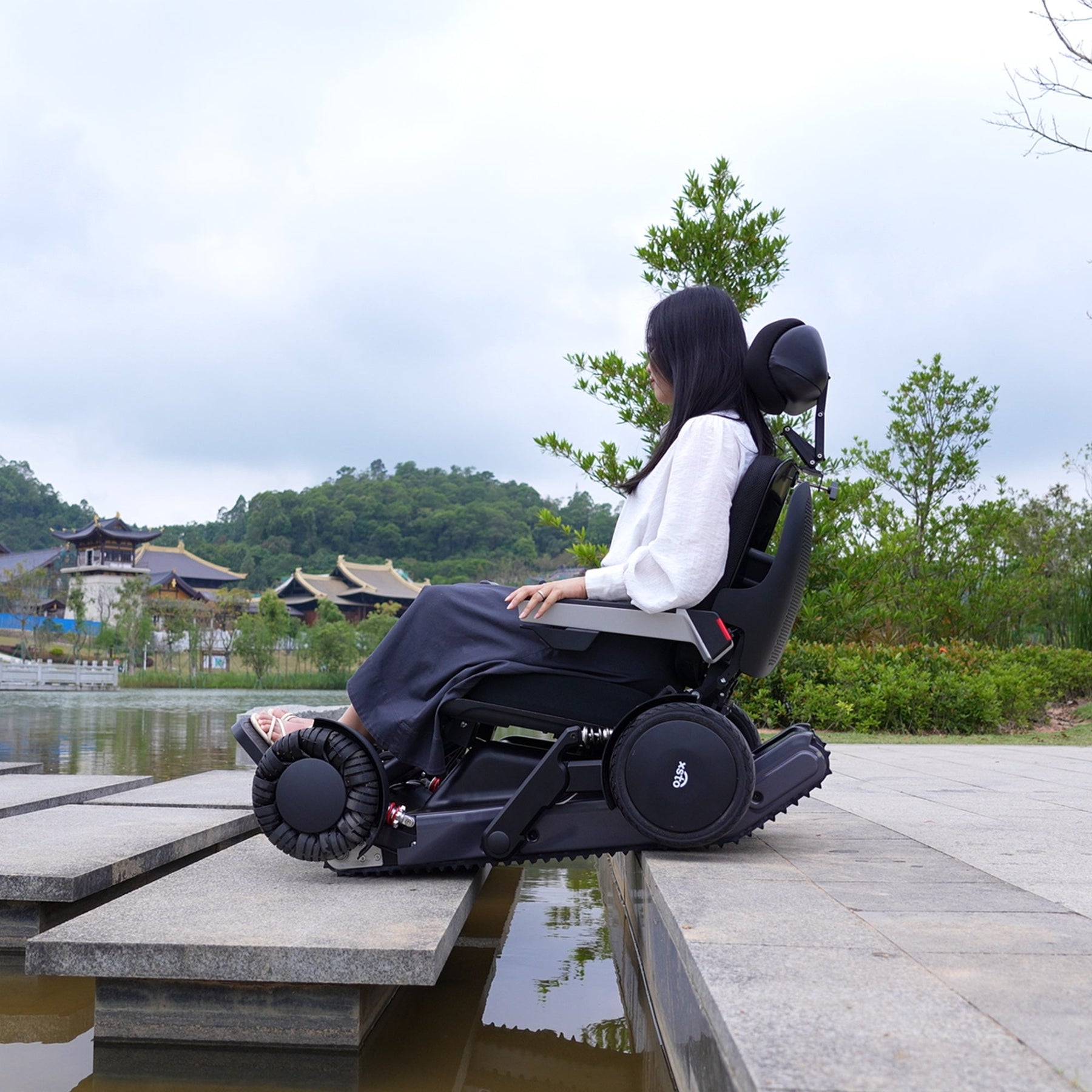

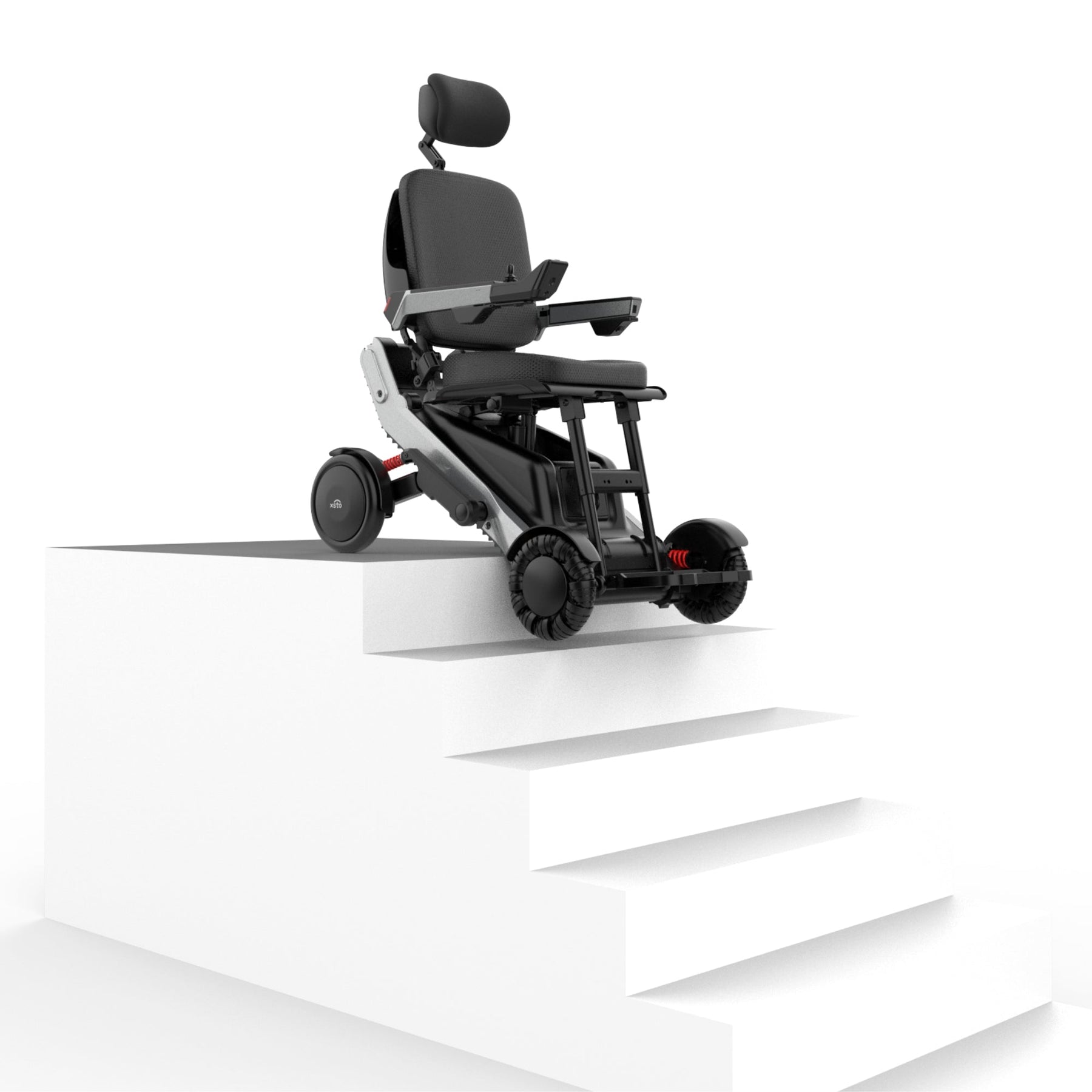

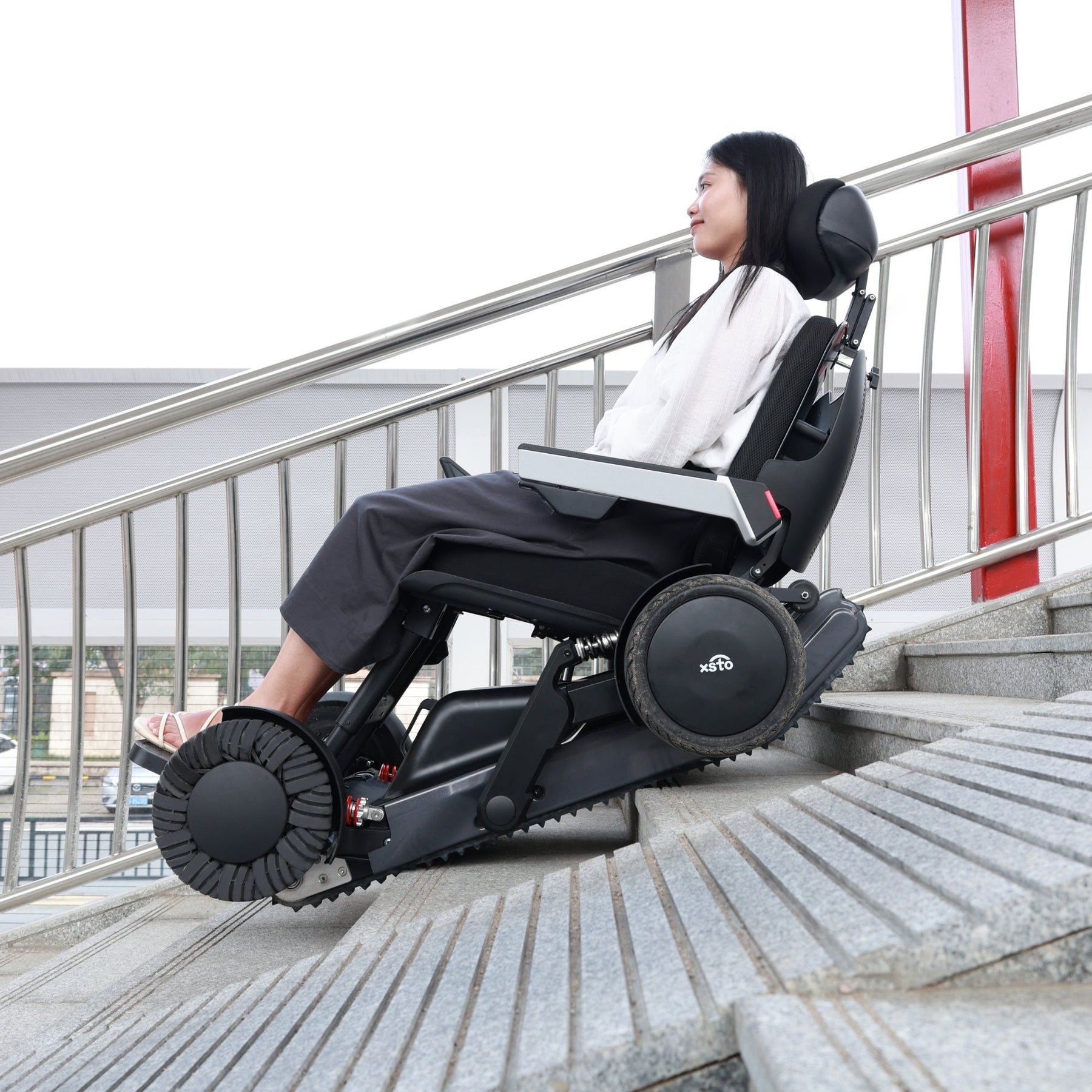

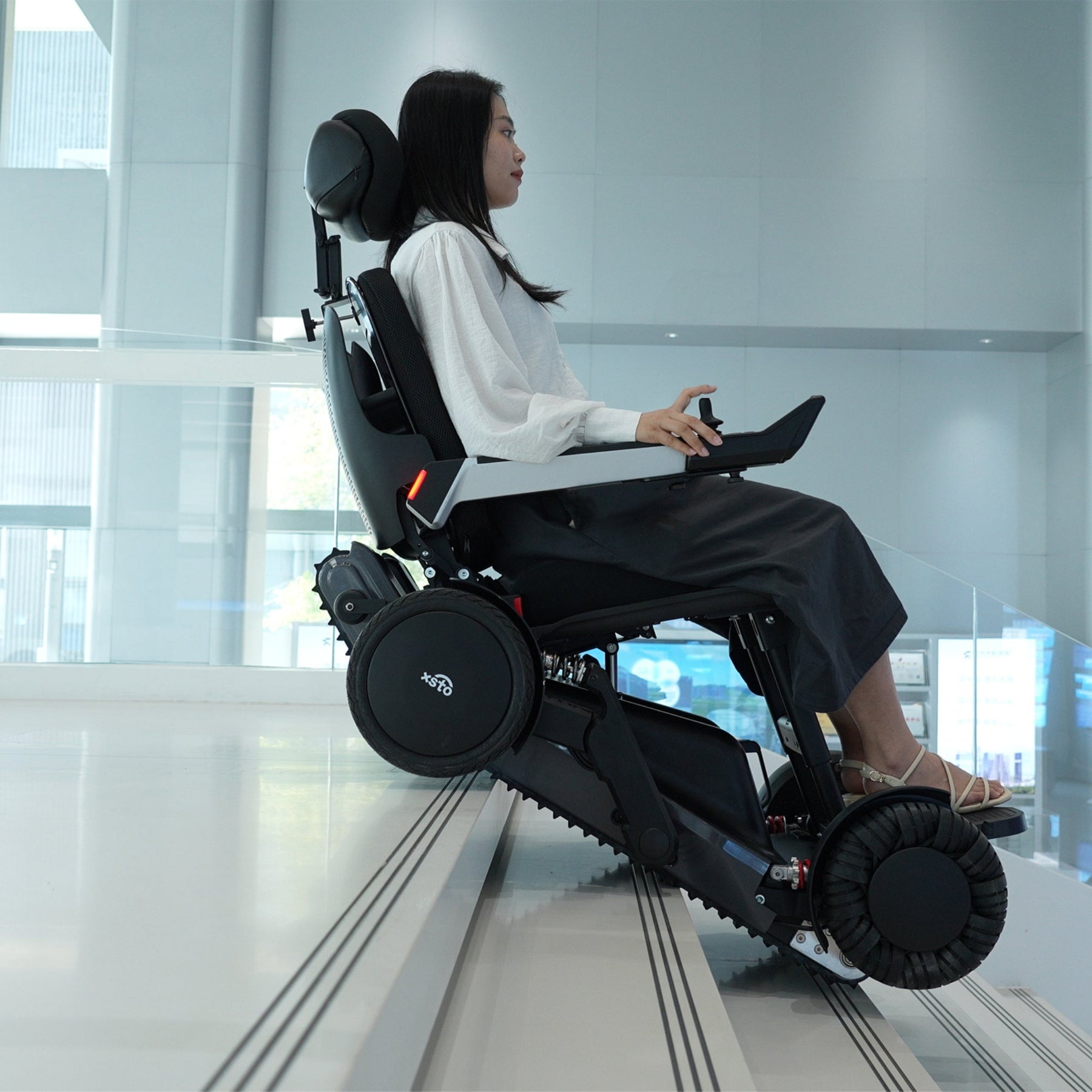

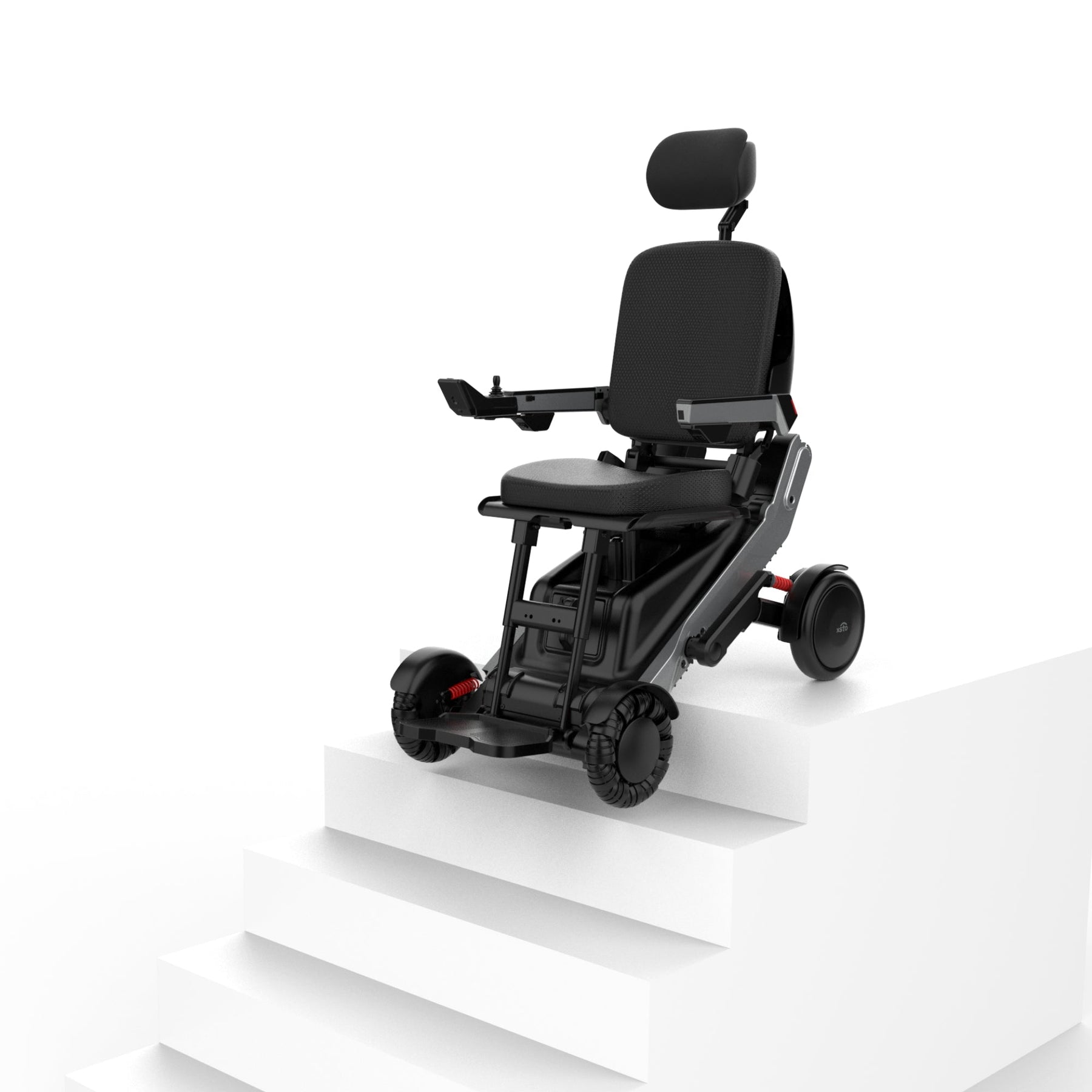

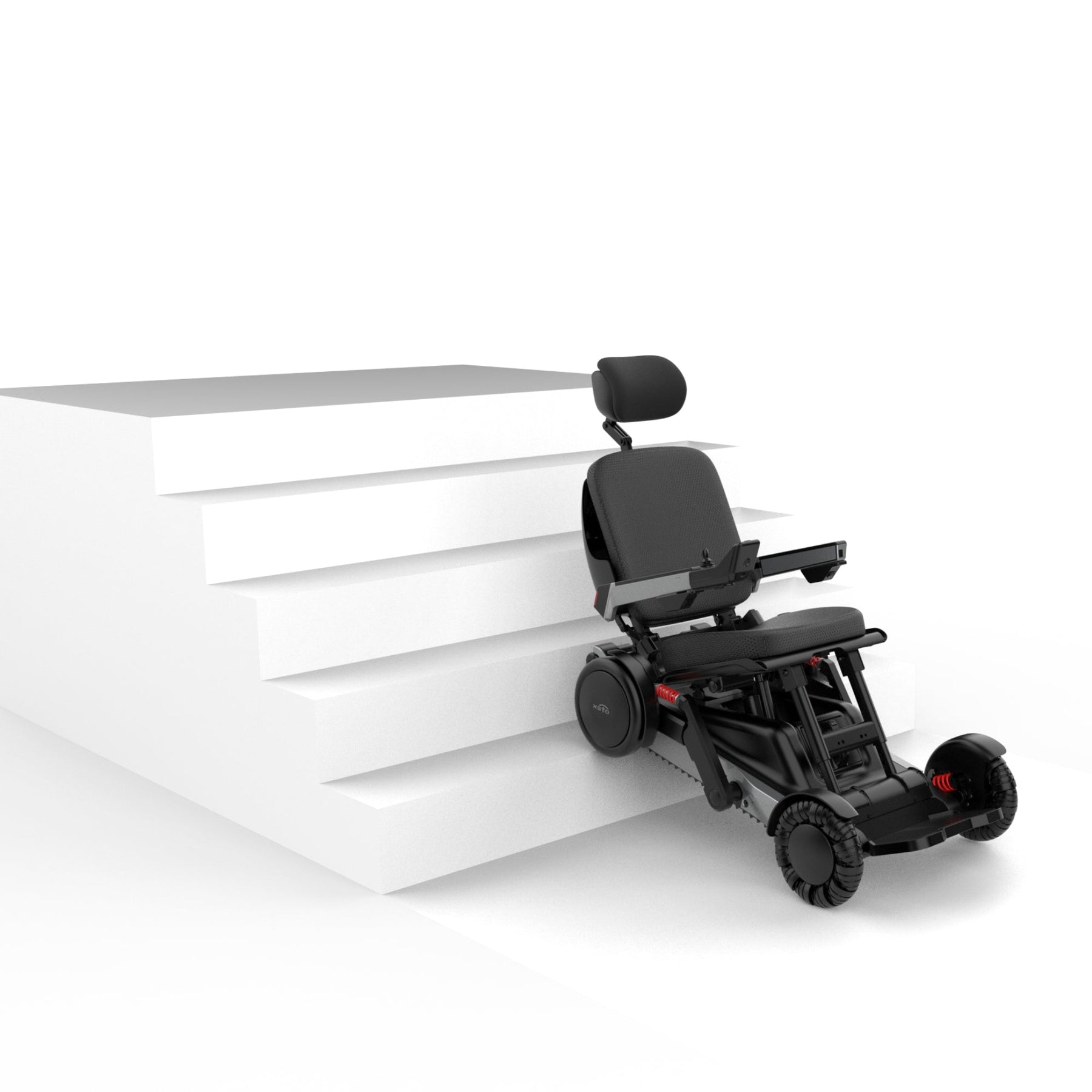

Climbing & Obstacle Navigation Mode:
Combining caterpillar and wheeled quadruped mechanisms, this mode is engineered to overcome challenges like stairs, steps, and steep slopes.

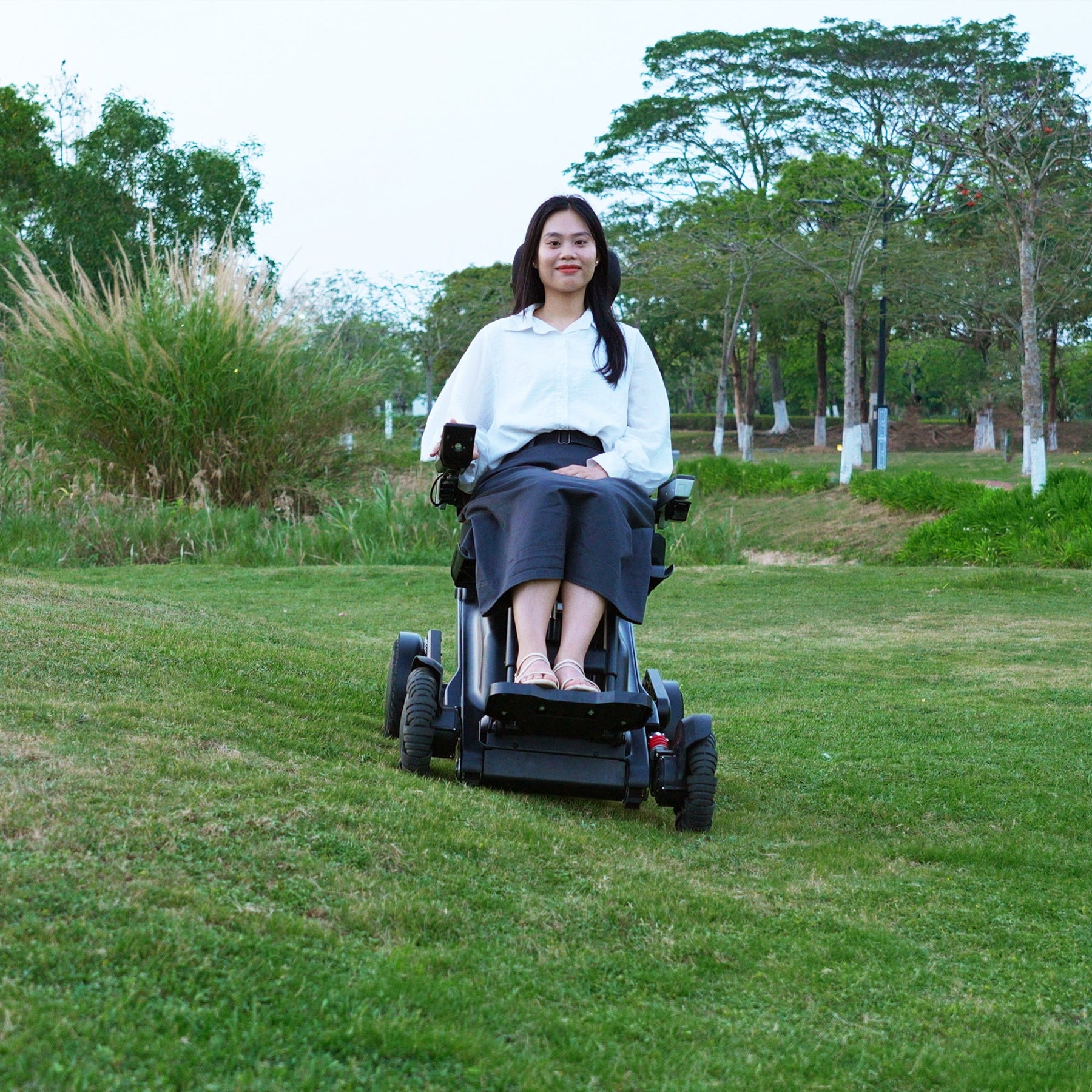

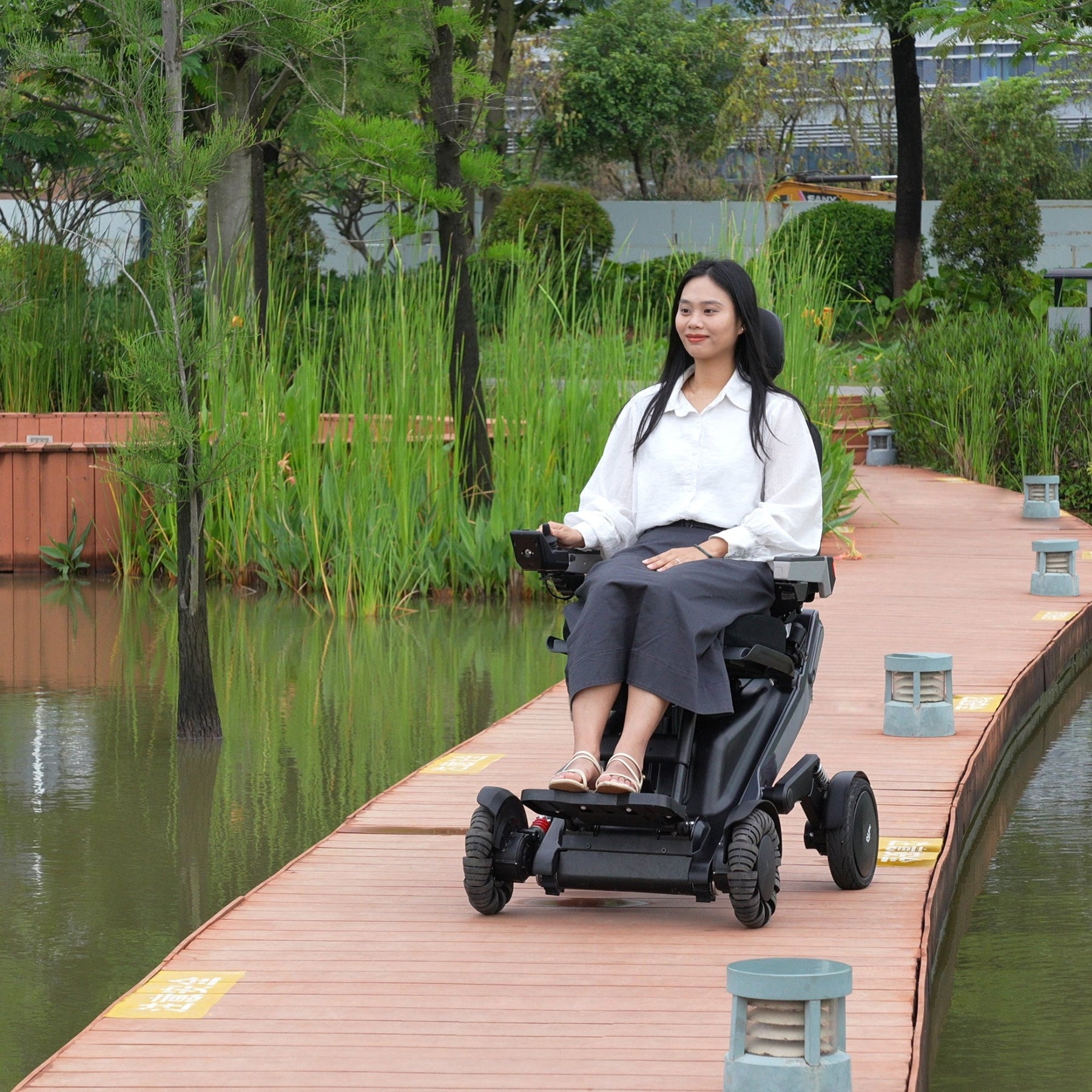

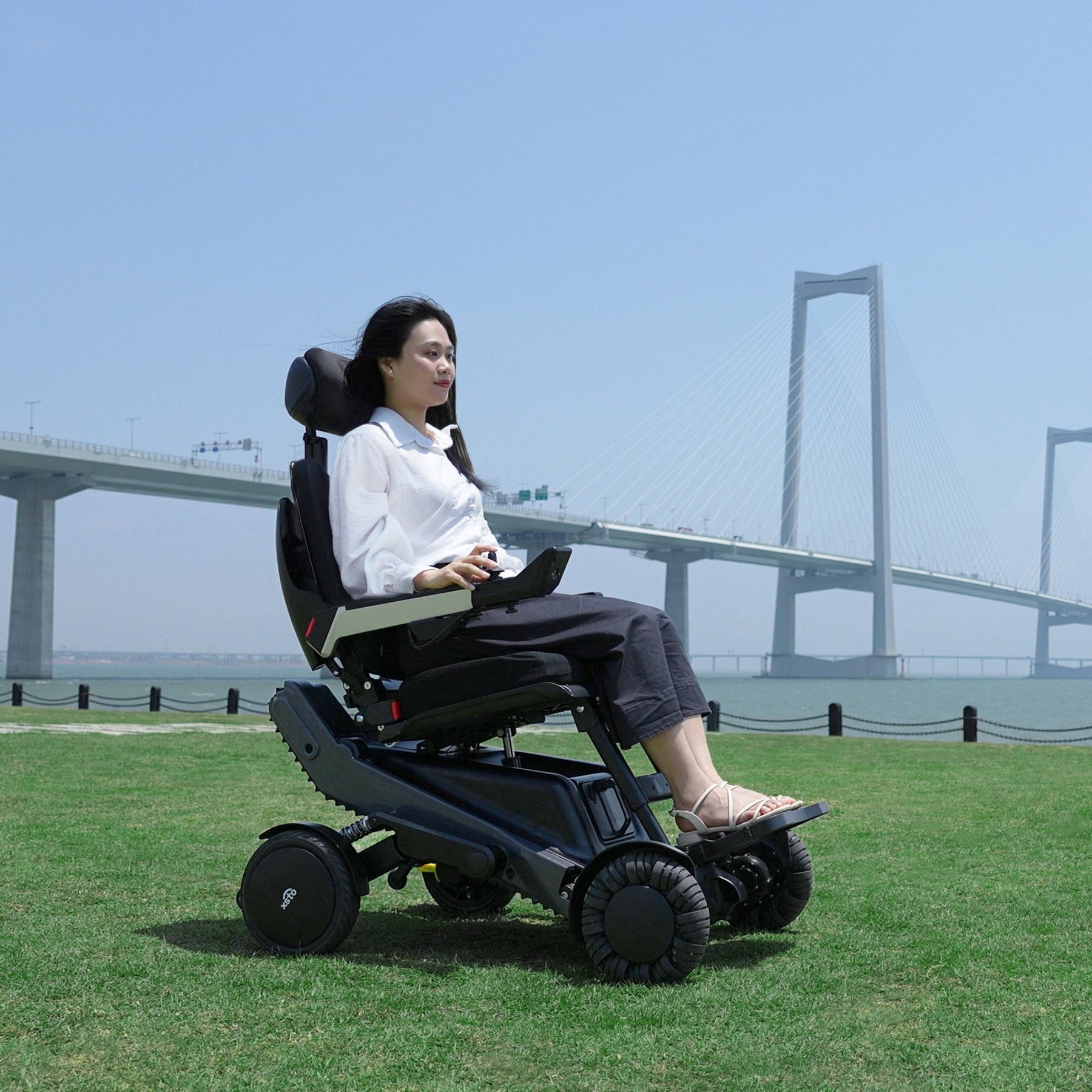

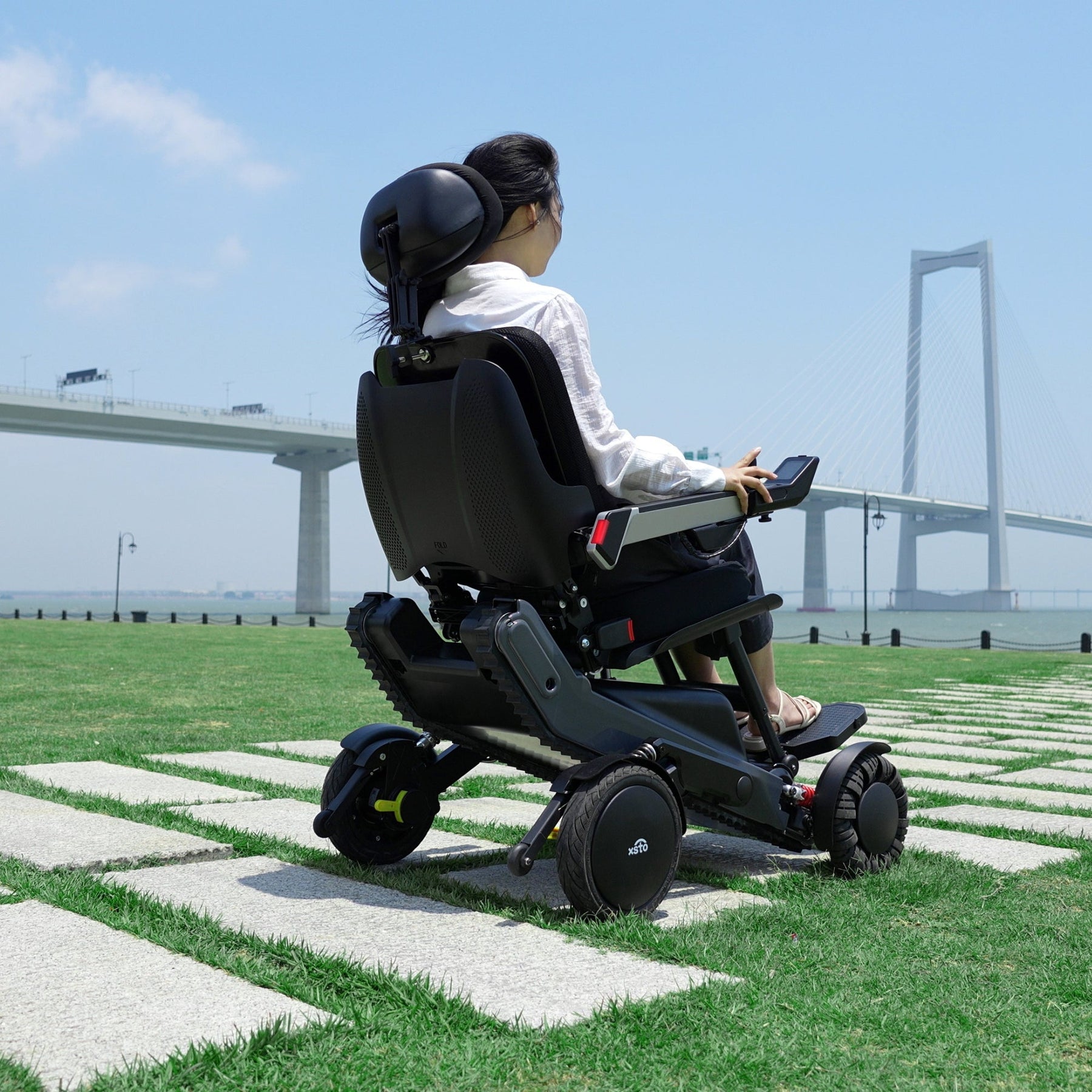

Wheeled Quadruped Mode
With independent power for each wheel and quadruped joint, plus a four-wheel independent suspension, this mode delivers superior cross-country performance and comfort on diverse surfaces, from flat indoor/outdoor areas to rough paths, grass, and gravel.
Intelligent AI Control
Utilizing LIDAR, gyroscopes, and advanced AI, the robot perceives its environment, constructs spatial maps, and intelligently navigates complex maneuvers like ascending/descending stairs, crossing slopes, and traversing uneven ground, ensuring a safe and smooth automated experience.
360° Self-Balancing Dynamic Seat
The industry-leading Prow Stabilization System, integrated with gyroscopic sensors and a unique spatial safety algorithm, provides automatic balancing across all terrain types. The machine also offers 360° omnidirectional steering on challenging surfaces while maintaining stability.
Specifications
| Weight | Approximately 100kg | Max Driving Speed | 12km/h |
|---|---|---|---|
| Maximum Load | 136kg | Range | 35km |
| Balance System | Continuous 360° Automatic Balancing (Tilt Range: 15° Forward & Backward, 8° Left & Right, 8-15° Other Directions) | Chassis Type | Wheeled Quadruped Caterpillar Chassis |
| Ascent Speed | 30 Steps/min | Descent Speed | 35 Steps/min |
| Chassis Powertrain Count | 10 | Pitch Range | Forward Tilt: 8°, Backward Recline: 43° |
| Total Powertrain Count | 14-16 | Battery Capacity | 24V 44.8Ah |
| Sensor Suite | LiDAR and Gyroscope | Front Wheel Type | 10-inch Mecanum Wheel |
| Assisted Driving Warnings | Standard | Parking Assist Radar | Standard |
| Waterproof Rating | IPX5 | Seat Width | 440-560mm |
| Seat Depth | 370-500mm | Backrest Width | 400/450/500mm |
| Armrest Height Range | 175-250mm | Backrest Height | 460-600mm |
| Backrest Tilt Angle | 90-135mm | Suitable Stair Dimensions | Height <220mm, Inclination <40° |
| Stair/Landing Specifications | Max Stair Width: 800mm L-shaped Corner: 1060x1060mm U-shaped Corner: 1060mm (Depth) x 2000mm (Width) Helical Angle <25° |
Operation Methods | 1. Remote Control 2. Joystick 3. Mobile App 4. Auto-Follow 5. Wireless Key |
| Special Features | Gentle Sway Mode. AI-Powered Operation | Locking Mechanism | App or Wireless Key |
| Lifting Range | Max: 750mm Min: 414mm |
Obstacle Clearance | Backward: 220mm Forward: 150mm |
| Minimum Turning Radius | Wheeled Quadruped Mode: 821mm Caterpillar Mode: 590mm |
Max Uphill Angle | Backward: 40° Forward: 15° (Wheeled Quadruped Mode) |
| Ditch Span Width | Caterpillar Climbing Mode: 550mm Wheeled Quadruped Mode: 180mm |
Mobility Modes | 1. Caterpillar Mode 2. Climbing & Obstacle Navigation Mode: 3. Wheeled Quadruped Mode |
